1.Material: Aluminum
2.Size: as you wanted
3.Grade: A, B
4.Surface: Color Painted
5.Marine Certificate: CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA
Weitong Marine supply all kinds of deck marine doors:
--A60 Steel Fireproof Door
--A60 Watertight Steel Door
--Fast Open/Close Aluminium Watertight Door
--Outside Door
--Aluminium Cabin Hollow Door
--Aluminium Weathertight Door
--Wheelhouse Sliding Door
--Gastight Door
--Wheelhouse Gastight Sliding Door
--Aluminium Weathertight Sliding Door
--Steel Door
--Weathertight Steel Door
--Quick Action Watertight Steel Door
--Quick Opening & Closing Weathertight Steel Door
--Quick Opening & Closing Watertight Steel Door
--Flush Watertight Door
--Quick Action Pressure Holding Door
--Watertight Door
--Steel Double-leaf Quick Action Weathertight Door
--Quick Open & Close Weathertight Aluminium Door
--Stainless Steel/Aluminium Sliding Door For Cabin
Specification:

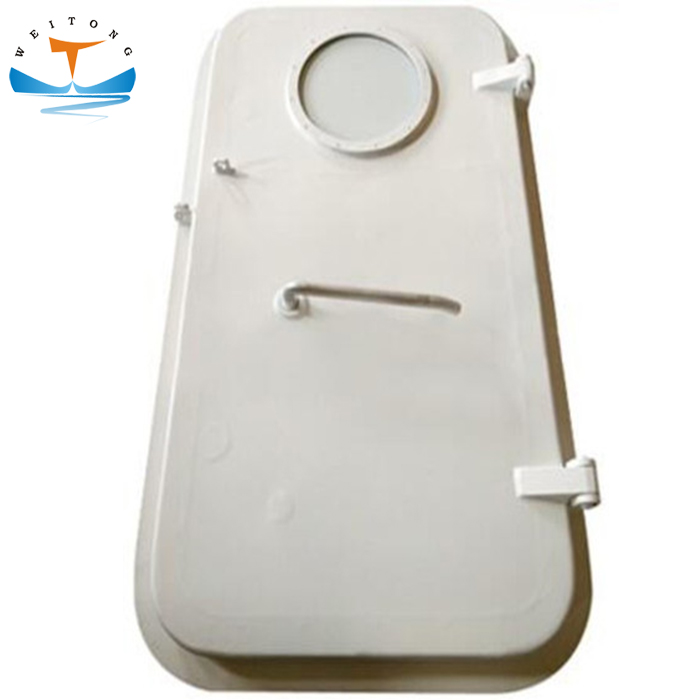

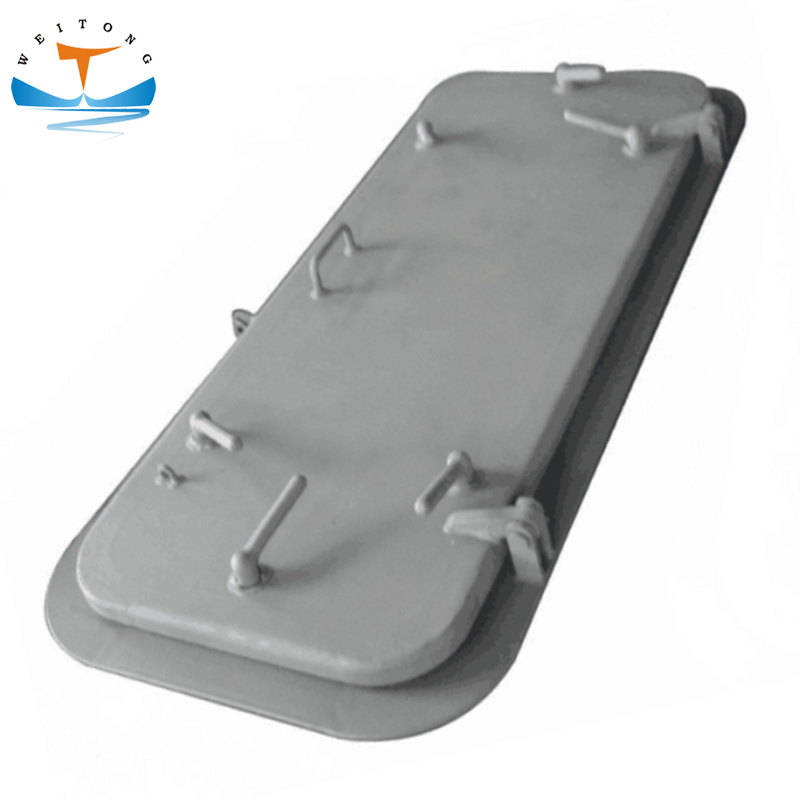

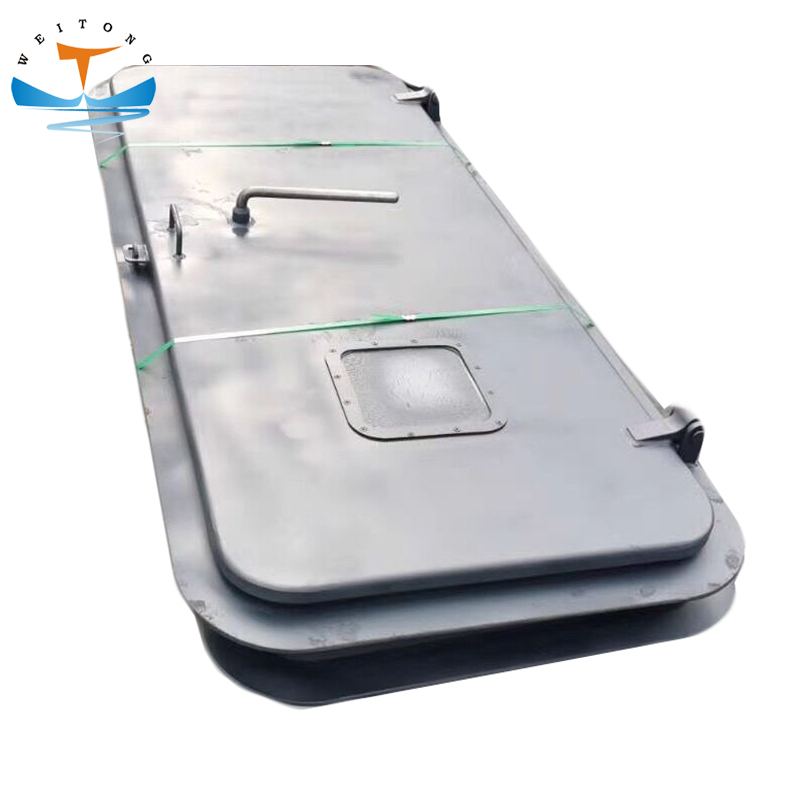

Product Name | Marine Weathertight / Watertight Steel Door |
Type |
AF, AY, BF, BY, CF, CY, DF, DY |
Dog clips / Single Handle / Round handle | |
Surface Treatment |
Sand-blasted to Sa2.5 and primer (for steel parts) |
Galvanized (for dogs and mechanism) | |
Clear light size | Customized |
Options | Bumper, Door closer, C2 lock, ISPS device, Portlight, Limit switch |
Making Process | Manufacturing door leaf→correcting→checking flatness→assembling→hose testing→watertight testing→measuring paint thickness |
Packaging | Standard Plywood packing, about 400pcs for 40'GP |
Shipping | Delivered goods to shipping port by seller |
ClASS | SIZE OF DOORWAY (HC*WC) |
OPENING SIZE OF WALL(H*W) | SIZE OF DOORWAY (HC*WC) |
OPENING SIZE OF WALL(H*W) |
Grade A | 1600*600 | 1700*700 | 1750*650 | 1850*750 |
1600*650 | 1700*750 | 1750*700 | 1850*800 | |
1600*700 | 1700*800 | 1750*750 | 1850*850 | |
1650*600 | 1750*700 | 1750*800 | 1850*900 | |
1650*650 | 1750*750 | 1800*600 | 1900*700 | |
1650*700 | 1750*800 | 1800*650 | 1900*750 | |
1650*700 | 1750*850 | 1800*700 | 1900*800 | |
1650*800 | 1750*900 | 1800*750 | 1900*850 | |
1700*600 | 1800*700 | 1800*800 | 1900*900 | |
1700*650 | 1800*750 | 1850*600 | 1950*700 | |
1700*700 | 1800*800 | 1850*650 | 1950*750 | |
1700*750 | 1800*850 | 1850*700 | 1950*800 | |
1700*800 | 1800*900 | 1850*750 | 1950*850 | |
1750*600 | 1850*700 | 1850*800 | 1950*900 |
