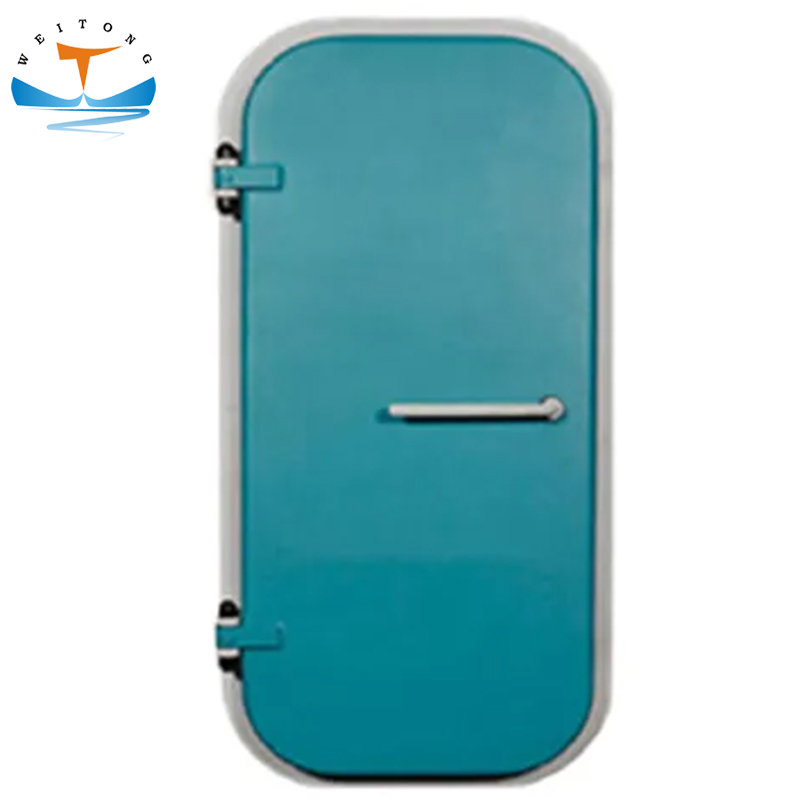

ABS/BV/GL/DNV/CCS Marine Steel Air Tight Door for Sale

It is suitable for engine control room. This door panel is made of high quality steel which is anti-aging and anti-corrosion. It possesses functions of sound proofness and airtight ness. This door has excellent soundproof ability which reduces noise effic
Description
Description
ABS/BV/GL/DNV/CCS Marine Steel Air Tight Door for Sale
ABS/BV/CCS Marine gastight Door For Sale

Manufactured according to IMO, SOLAS

Designed according to international standards with low noisy and light opening

Application: normally used in wheelhouse, suitable for vessels with low combustion point

Material: aluminum(type B)/stainless steel(type A)/steel frame and aluminum panel(type C)

Pressure difference: 100pa

Available certificates: GL, DNV, CCS, BV,ABS, LR, KR, RS, etc



Available in natural finish, primed or coated in accordance with client request.

Sizes and colors will customize according to your requirements.

Specification of airtight door:

1.Basic Parameters of A60 Weathertight and Gas Tight Door (Type A)

TYPE SIZE OF DOORWAY
L*B
FRAME SIZE
L1*B1
SIZE OF B.H. OPENING
L2*B2
WEIGHT KG OPTION
SINGLE LEAF
262WHL005M-00
1600*600 1700*700 1705*705 118 DOOR CLOSER









DOOR STOPPER
1650*650 1750*750 1755*755 128
1700*700 1800*800 1805*805 142
1750*800 1850*900 1855*905 149
1900*900 2000*1000 2005*1005 162
DOUBLE LEAF
262WHL005MS-00
1600*1000 1700*1100 1705*1105 172
1650*1100 1750*1200 1755*1205 184
1700*1300 1800*1400 1805*1405 230
1750*1600 1850*1700 1855*1705 280
2000*1850 2100*1950 2105*1955 324



2.Basic Parameters of A60 Weathertight and Gas Tight Door (Type B)

TYPE SIZE OF DOORWAY
L*B
FRAME SIZE
L1*B1
SIZE OF B.H. OPENING
L2*B2
WEIGHT KG OPTION
SINGLE LEAF
262WHL653-00
1600*600 1696*696 1705*700 116 DOOR CLOSER




DOOR STOPPER
1650*650 1746*746 1750*750 123
1700*700 1796*796 1800*800 133
1750*800 1846*896 1850*900 145
2400*1400 2496*1496 2500*1500 276
DOUBLE LEAF
262WHL651-00
1600*1000 1696*1096 1700*1100 174
1650*1100 1746*1196 1750*1200 174
1700*1300 1796*1396 1800*1400 213
1750*1600 1846*1696 1850*1700 249
2500*2300 2596*2396 2600*2400 427
