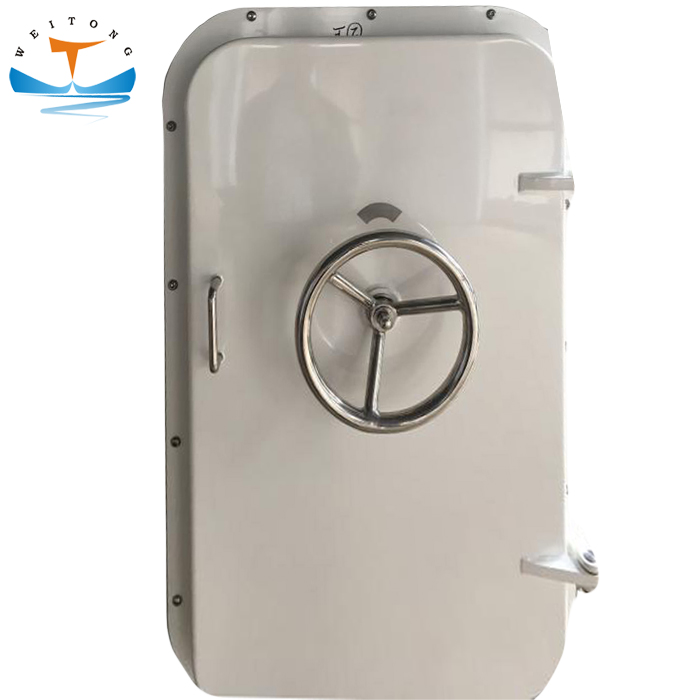

Aluminum A60 Fire Rated Quick Action Marine Weathertight Door

Aluminum Quick Action Weathertight Door should pass the hose test with nozzle diameter 12.5mm and the water pressure 0.25Mpa,
Description
Description
Aluminum Quick Action Marine Weathertight Door
Main Material:
Door Leaf-Aluminum
Door Frame-Aluminum(Bolted installment) or Steel (Welded installment)
Lever-Carbon Steel or Stainless Steel
Type:
JA-Aluminum weathertight door
JB-Aluminum weathertight door with round window
JC-Aluminum weathertight door with round window & guard bar
JD-Aluminum weathertight door with square window
JE-Aluminum weathertight door with round window & deadlight
Aluminum Quick Action Weathertight Door Specification

Clear Size Cut Out Size Door leaf Size Door Frame
WXh W1Xh1 R W2Xh2 t Spec Thickness
500x1000 560x1060 130 555x1055 4,6 75x50 6,8
600x1200 660x1260 655x1255
600x1400 660x1460 655x1455
750x1400 810x1460 805x1455
900x1400 960x1460 955x1455
600x1600 660x1660 655x1655
750x1600 810x1660 805x1655
900x1600 960x1660 955x1655

Certificate:

Workshop:
