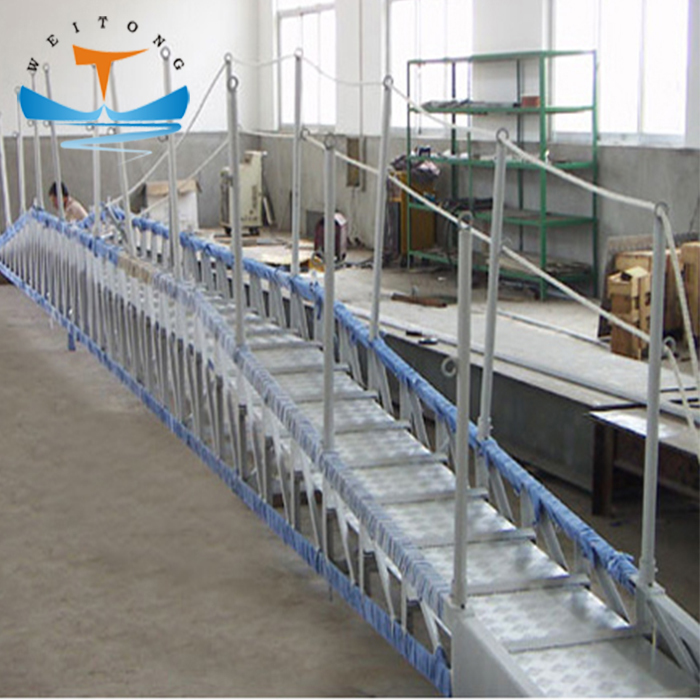

Bend Type Aluminum Wharf Ladder Marine gangway wharf ladder is made of aluminum and used for crew to embark and disembark when ships mooring alsongside a shore. We can supply flat type gangway, bend type gangway, fully fixed type gangway and detachable type gangway. Wharf Ladder also can be called as aluminum gangway or shore gangway. Normally it is with hook in one side and another side with roller. If the length is too long, not suitable for shipment. The ladder can be made with two parts. The wharf ladder also can be with the safety net. The surface of the product is anodized.c
Standard:CB3116-82, JIS F2613-1796 & ISO7061-1993
Max usage angle:30 Main Material:
1-Roller: Nylon
2-Ladder:Alumimum Alloy
3-Rope: Nylon
4-Hook: Aluminum Alloy or Steel
Speccification:
L
I
H
h
8000
3200
350
170
10000
4830
500
250
12500
4830
550
250
15000
7230
750
250
Customized length and width. The size above is for reference. But the standard width is inside 600mm, outside 700mm.
