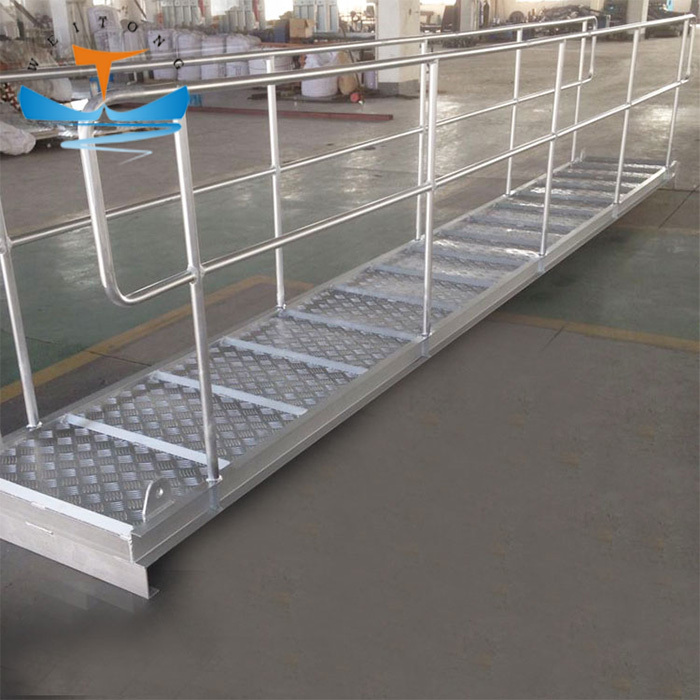

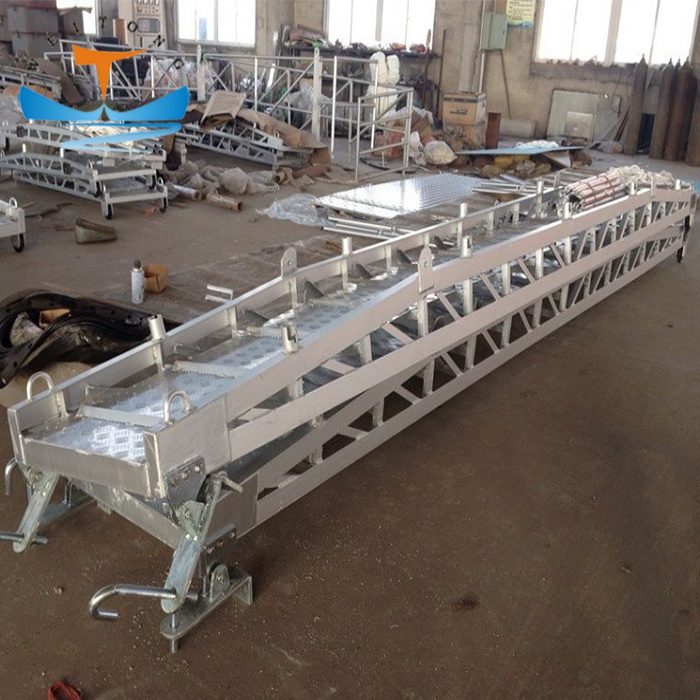

Marine Aluminum Gangway Ladder With Handrail

Description

Boat Aluminum Wharf Ladder With Handrail
Marine wharf ladder is made of stainless Steel and used for crew to embark and disembark when ships mooring alsongside a shore. We can supply flat type gangway, bend type gangway, fully fixed type gangway and detachable type gangway. Wharf Ladder also can be called as aluminum gangway or shore gangway. Normally it is with hook in one side and another side with roller. If the length is too long, not suitable for shipment. The ladder can be made with two parts. The wharf ladder also can be with the safety net. The surface of the product is anodized.

Standard:CB3116-82, JIS F2613-1796 & ISO7061-1993
Max usage angle:30
Features:
1. Standard: CB*3116-82
2. Certificate: CCS, BV, ABS, RINA, DNV, NK, GL, LR, etc.
3. Type: A8, A10, A12.5, A15
4. Length: 8m-15m
5. Customized sizes
6. OEM service available

Specification:

A type wharf ladder

L	I	H	h
8000	3200	350	170
10000	4830	500	250
12500	4830	550	250
15000	7230	750	250
Customized length and width. The size above is for reference. But the standard width is inside 600mm, outside 700mm.
