Description

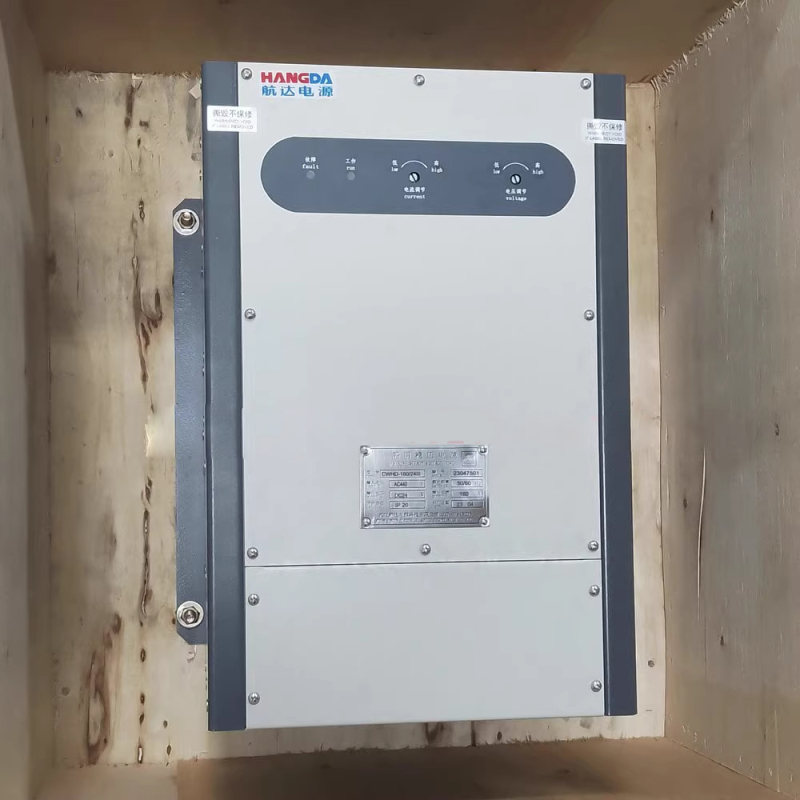

CWHD-250/24 Marine Steady Voltage Power

WUHAN HANGDA ELECTRICAL SOURCE TECHNOLOGICAL CWHD-250/24 marine steady voltage power is widely used on the ships for charge and discharge panel, this CWHD 250/24 charger output current is 250A, the output current and output voltage can be adjust according to your requirements.

Specifications（Output current）			250A
Input	Rated voltage		Single-phase 220VAC、Three-Phase 380VAC、Three-Phase 440VAC
	Input range		Rated voltage ±15%
	Input frequency		45~65HZ
	Efficiency		≥87%
	Maximum current	Single-phase 220	＜45A
		Three-Phase 380	＜15A
		Three-Phase 440	＜13A
Output	voltage		28.5VDC±0.1V(Can be adjusted according to customer requirements and battery specifications）
	Average floating charge conversion current		±1%
	Output ripple and noise		VPP≦300mV
Features	Alarm and protection functions		Output under voltage warning, output under voltage warning, output over-voltage protection, output short circuit protection, output over-current protection, power over temperature protection
	Standard functions		Public warning, fault passive dry contact port (contact limit specification: 32V / 1A)
	Indication and adjustment		Input instructions, work instructions, fault instructions, current regulation
Working environment	Operating temperature		‐15℃~+55℃
	Storage temperature		‐25℃~+85℃
	Relative humidity		0~95%（Non-condensing）
	Atmospheric pressure		70kPa~106kPa
	Cooling method		Air cooling
Standard range	Safety		IEC61000-4-2、IEC61000-4-3、IEC61000-4-4、IEC61000-4-5、IEC61000-4-6、IEC60092-101、IEC60068-2-11
	Conduction, radiation		CISPR16、EN55022
	Certification		CCS Type Approval
Others	Size(WxDxH)mm		295x316x410
	Weight		43kg
	Installation method		Wall mounted installation
