Double Deck Navigation Signal Light CXH-20S

Item No.: 00524
Weitong Marine offers Double Deck Navigation Signal Light CXH-20S in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
Description
Description

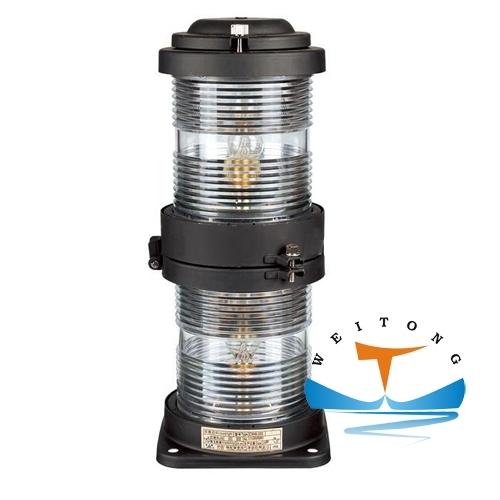

Double Deck Navigation Signal Light CXH-20S
The Navigation Signal Light used to the ship with length12M or above 12M(<50M) as lamp signal liaison
Standards
1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012
Features
1. Easy to Install and replace the bulb with a leakage hole at the bottom.
2. The shell is made of Stainless Steel
3. The shade is made of polycarbonate, UV Resistance and non-discolouring color.
Double Deck Navigation Signal Light CXH-20S Specifications
Name Type Visibility Level Arc Lamp Holder Voltage/power Cable Outside Diameter Protection Class Color Weight
Starboard light CXH1-20S 2n.m 112.5° B15d 24V/2x30W Φ8   Green 2.3kg
Port light CXH2-20S 2n.m 112.5° IP56 Red 2.3kg
Masthead light CXH3-20S 5n.m 225° White 2.3kg
Stern light CXH4-20S 2n.m 135° White/Yellow 2.3kg
All-round light CXH6-20S 2n.m 360° Red/Green/White 2 kg
