Marine Engine Room Steel Inclined Ladder

Weitong Marine offers kinds of quality Ship steel Inclined Accommodation Ladderat reasonable price with outstanding service. pls feel free to contact us for more details.
Description
Description
Marine Engine Room Steel Inclined Ladder
Marine engine room inclined ladder is used in the engine room of various vessels, made of steel material, designed in accordance with the ISO standard and it meet the requirements of all kinds of classification society.

Support customized ladder accordint to customers requirements.
Our marine inclined ladder has light weight, portable for use.
Certificate: CCS, DNV, BV, LR, KR, NK, etc.

Marine Inclined Accommodation Ladder  Feature:
1. Light weight, High intensity,safe and reliable.
2.With fixed arc steps, and with anti-skid slot on the surface of the steps.
3. Material: Aluminum Alloy/steel
4. widely used for various ship.
5. Standards: GB833-87

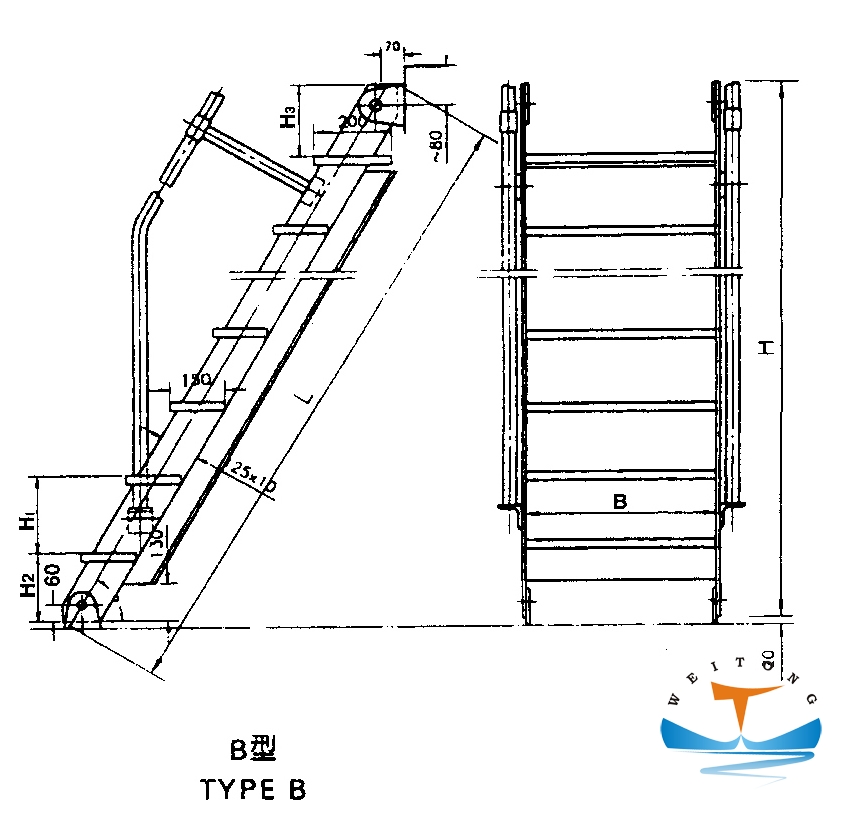

Ship Aluminum Inclined Ladder Specification
Model Ladder frame Steps Inclinationangle Slope Ladder height
A Flat steel Checkered plate 55° /60° 450/600 750~2850
B Expanded plate
C Angle steel Checkered plate 3000~4050
D Expanded plate
