Types of Step:
| Type |
Material |
Weight/pc |
| A |
Aluminum |
0.95 |
| B |
Wood |
1.9 |
| C |
Rubber |
3.5 |

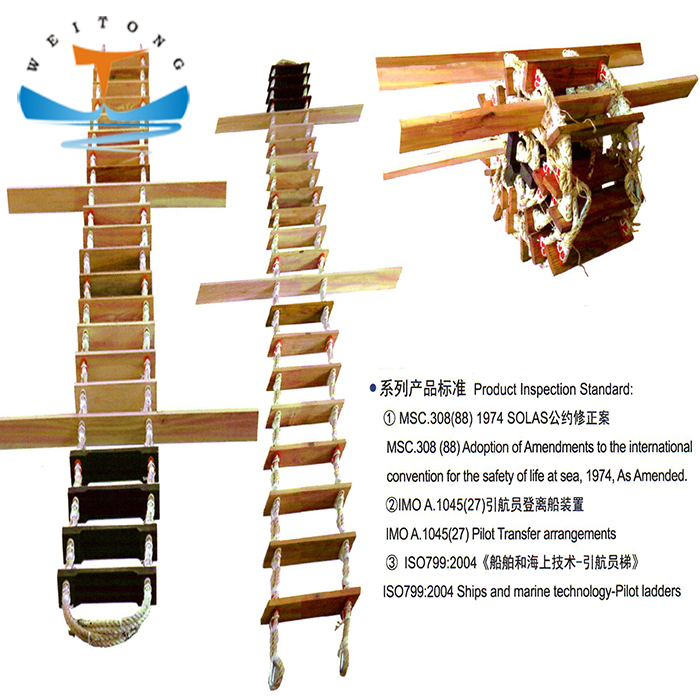

Marine Pilot Rope Embarkation Ladder Specification
| No of step |
Length of rope ladder (mm) |
Weight (kgs) |
| Aluminum |
Wood |
| 10 |
3100 |
25.86 |
31.56 |
| 15 |
4650 |
33.47 |
43.92 |
| 20 |
6200 |
41.08 |
56.27 |
| 25 |
7750 |
48.69 |
68.64 |
| 30 |
9300 |
56.3 |
81 |
| 35 |
10850 |
63.91 |
93.36 |
| 40 |
12400 |
71.52 |
105.72 |
| 45 |
13950 |
79.13 |
118.08 |
| 50 |
15500 |
86.74 |
130.44 |
| 55 |
17000 |
94.35 |
142.86 |
| 60 |
18500 |
101.96 |
155.16 |
| to add each 5 steps |
length increase 1500 |
weight increase 7.61 |
weight increase 12.36 |
