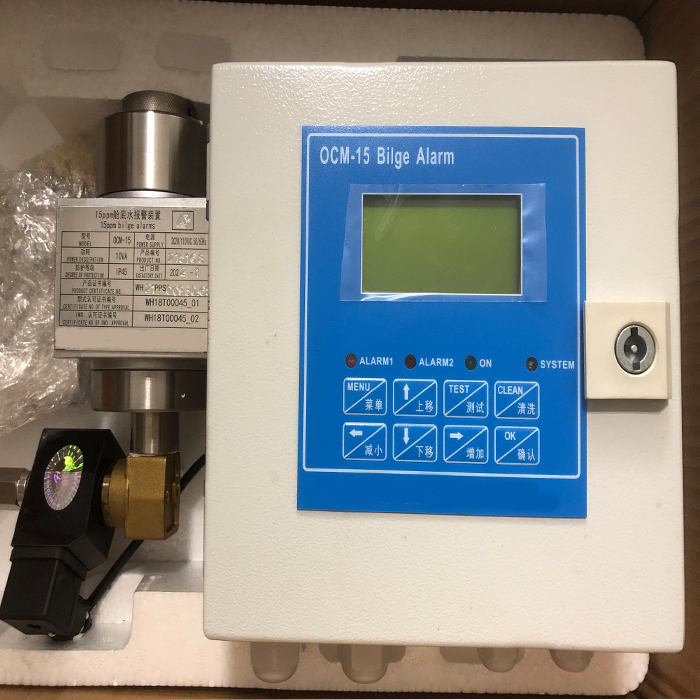

Mini Type 15ppm Marine Bilge Alarm

Item No.: 00275
Weitong Marine offers Mini Type 15ppm Bilge Alarm in high quality with reasonable price and best service. If you are interested in the item, pls don't hesitate to contact us for more details.
Description
Description
Mini Type 15ppm Marine Bilge Alarm with CCS
Mini Type 15PPM Bilge Alarm System is small, simple and user friendly, constantly monitoring the bilge oil water, designed in accordance with the latest requirement of MARPOL 73/78, Revised Annex I and MEPC 107(49).
Certificate: CCS

Mini Type 15ppm Bilge Alarm Main Performance Indicator
Measure range 0-30ppm
Accuracy Better than ±5ppm(when 15ppm)
Display of measurement value LCD screen display
Alarm indication 2 ways red LED
Working point of alarm 15ppm
Alarm delay 1 0 second
Alarm delay 2 4 seconds
Alarm output 2 channels of relay output
Rated value of alarm relays 3A, 250VAC, non- inductive
Output signal 4-20mA
Detection of feedback signal of output of alarm relays 2 channels of operation statue contact detection
Data of alarm data storage and printing output
Ambient temperature +1°C - +55°C
Relative humidity ≤93%
Temperature of sampling water +1°C-+40°C
Pressure of sampling water 0.1-0.6 MPa
Flow rate of sampling water 0.1- 4L/min
Power supply 220VAC, 50/60Hz
Power consumption 30W
Protection grade IP45
Weight 8 Kg
